Pump for live fish transport 4M.E2

€12,900.00

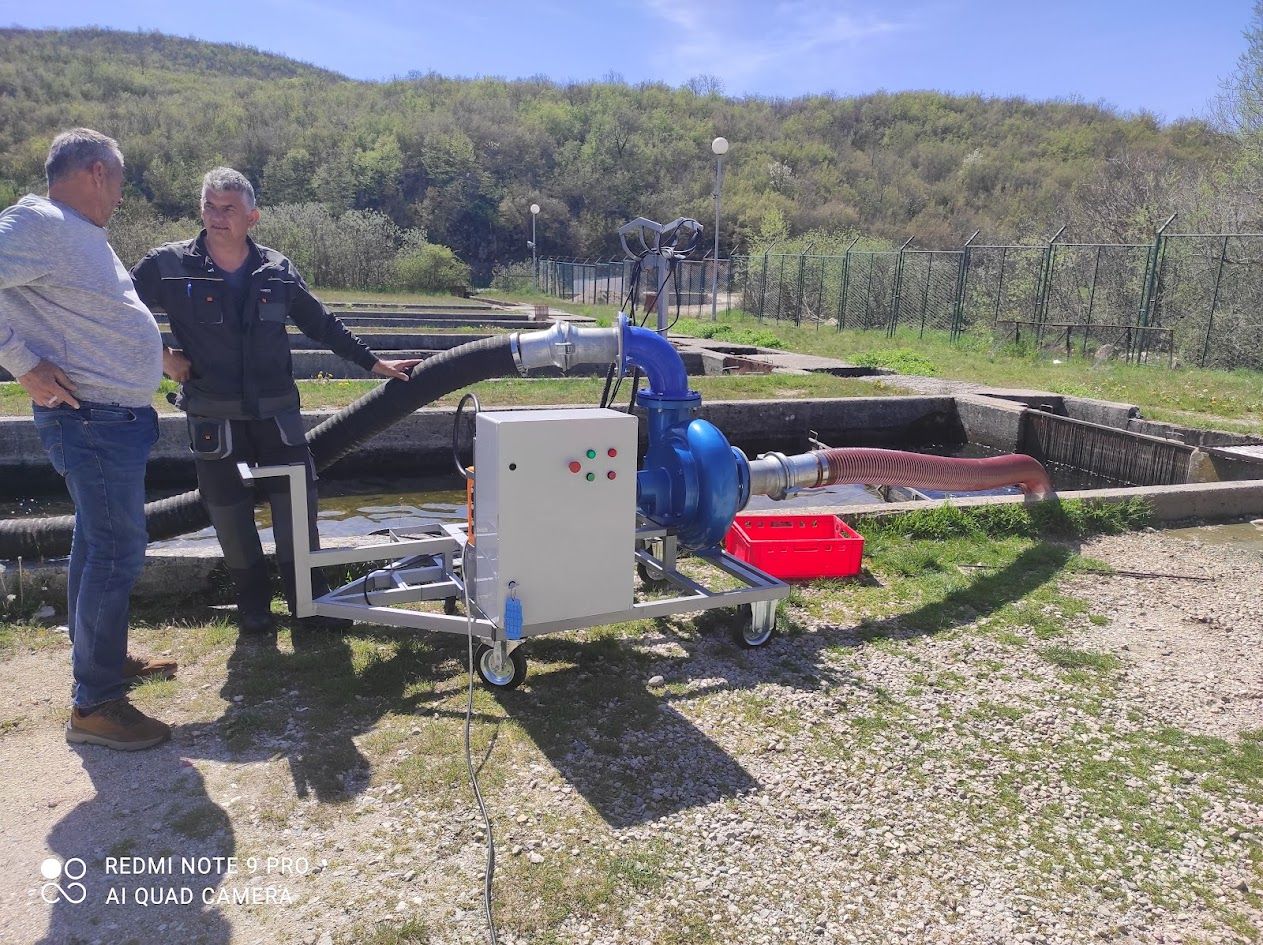

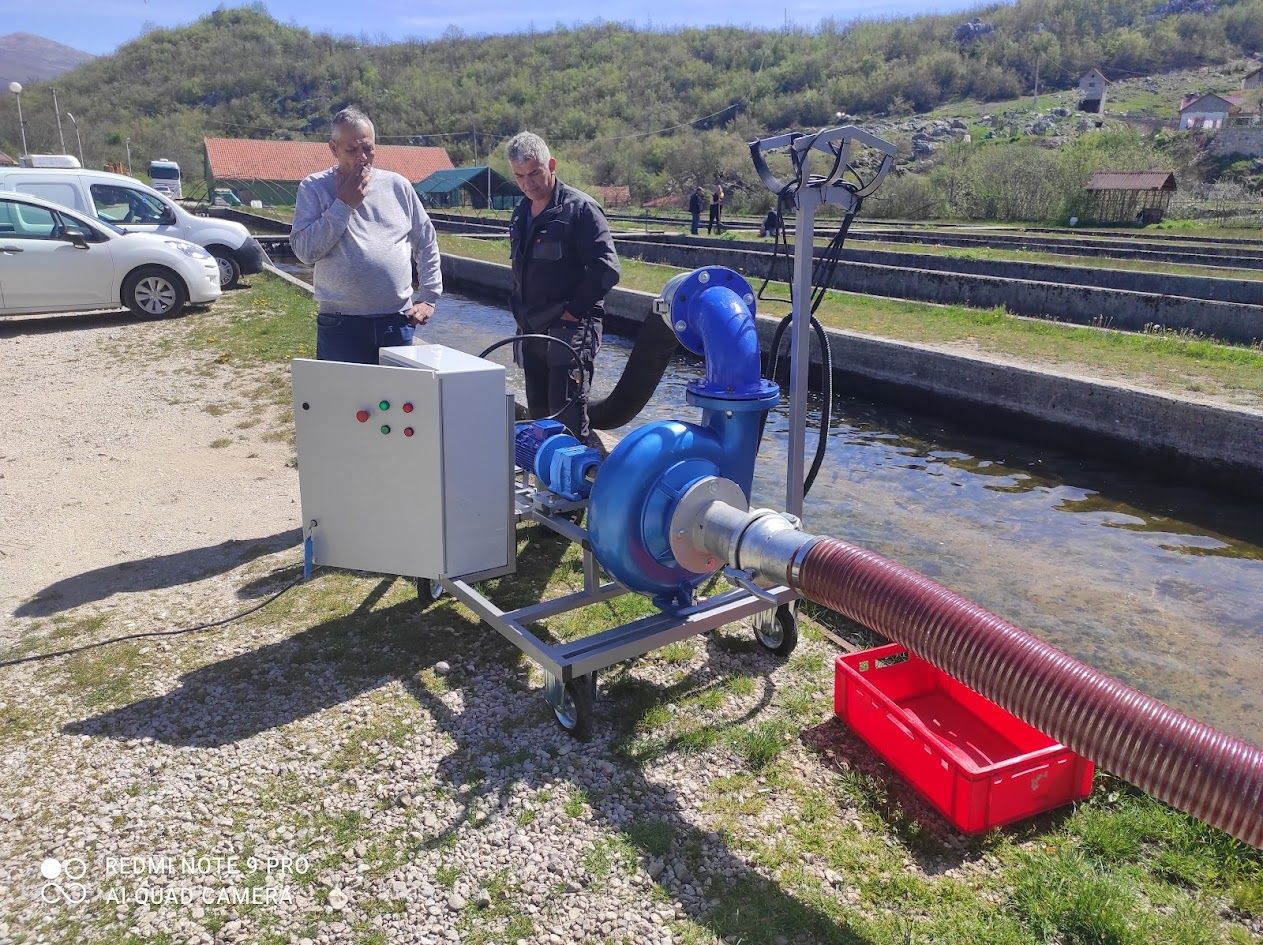

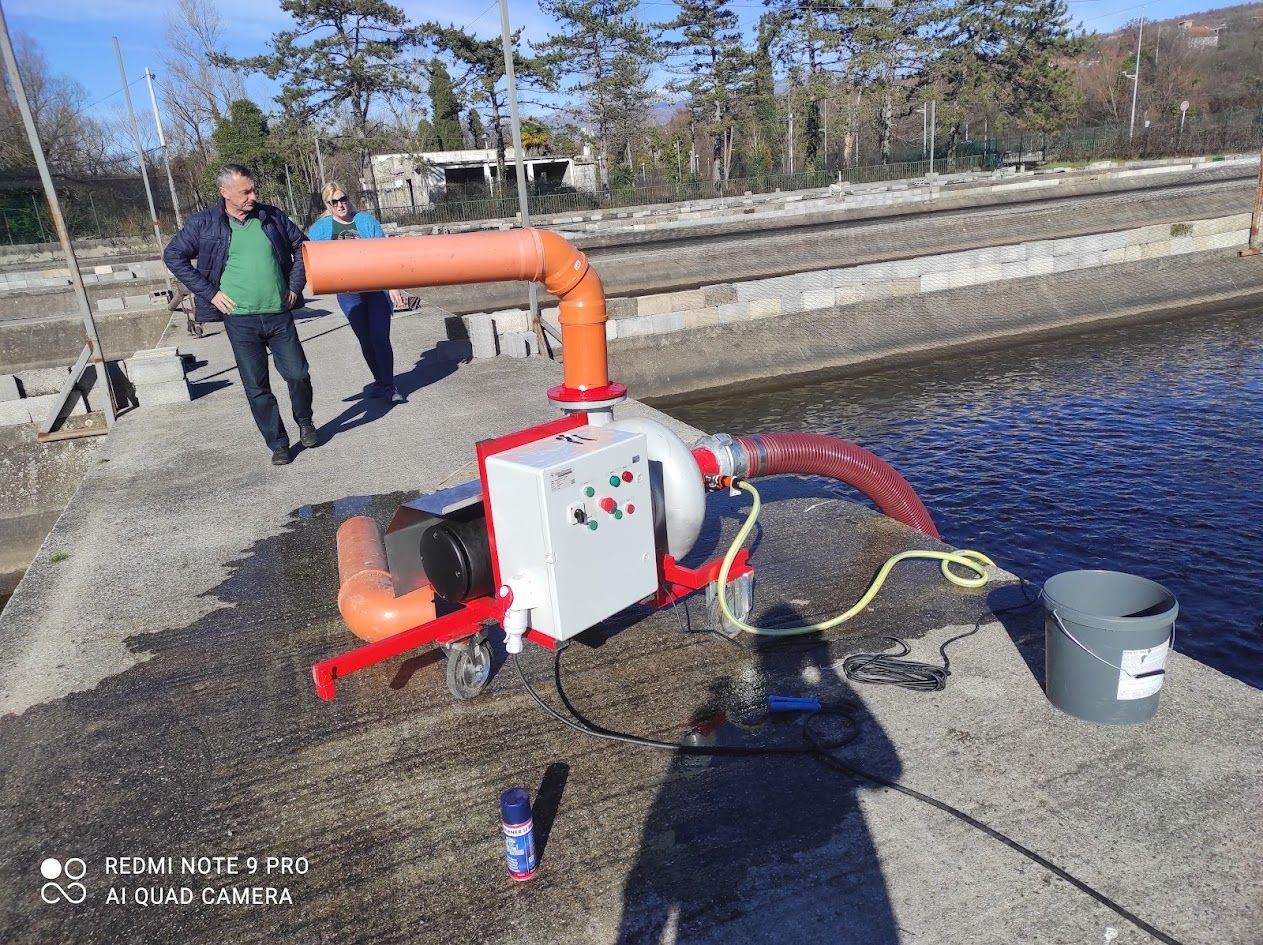

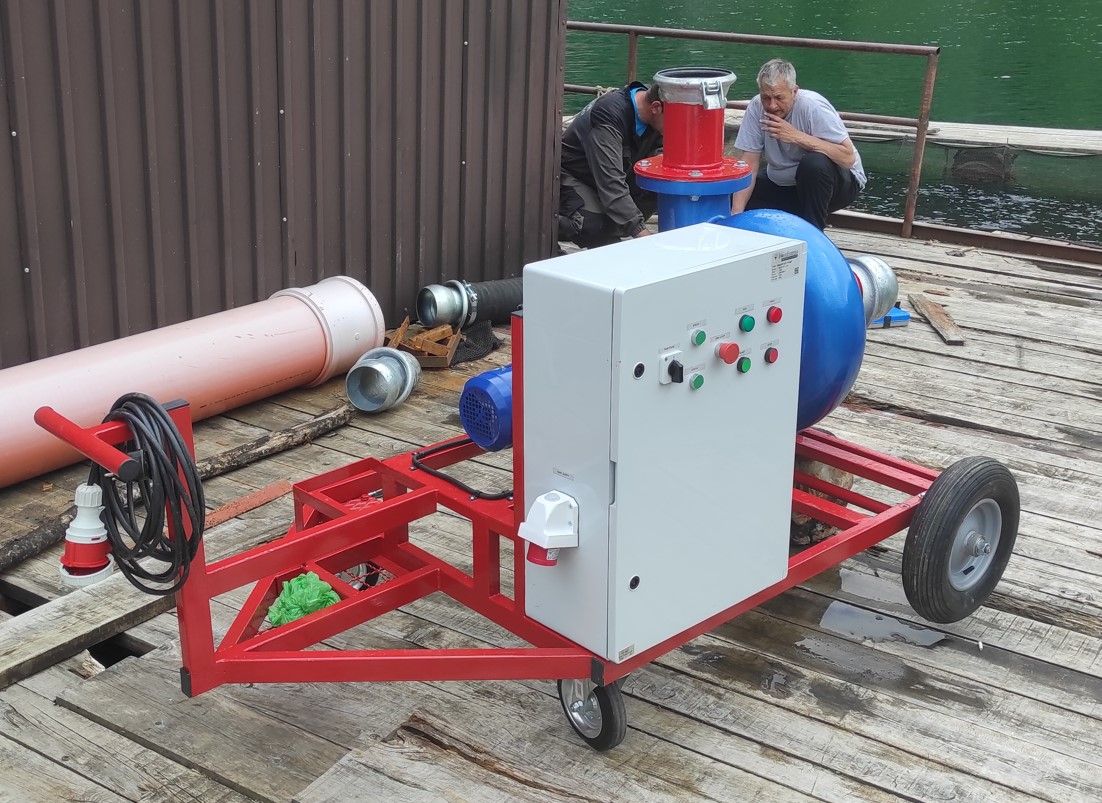

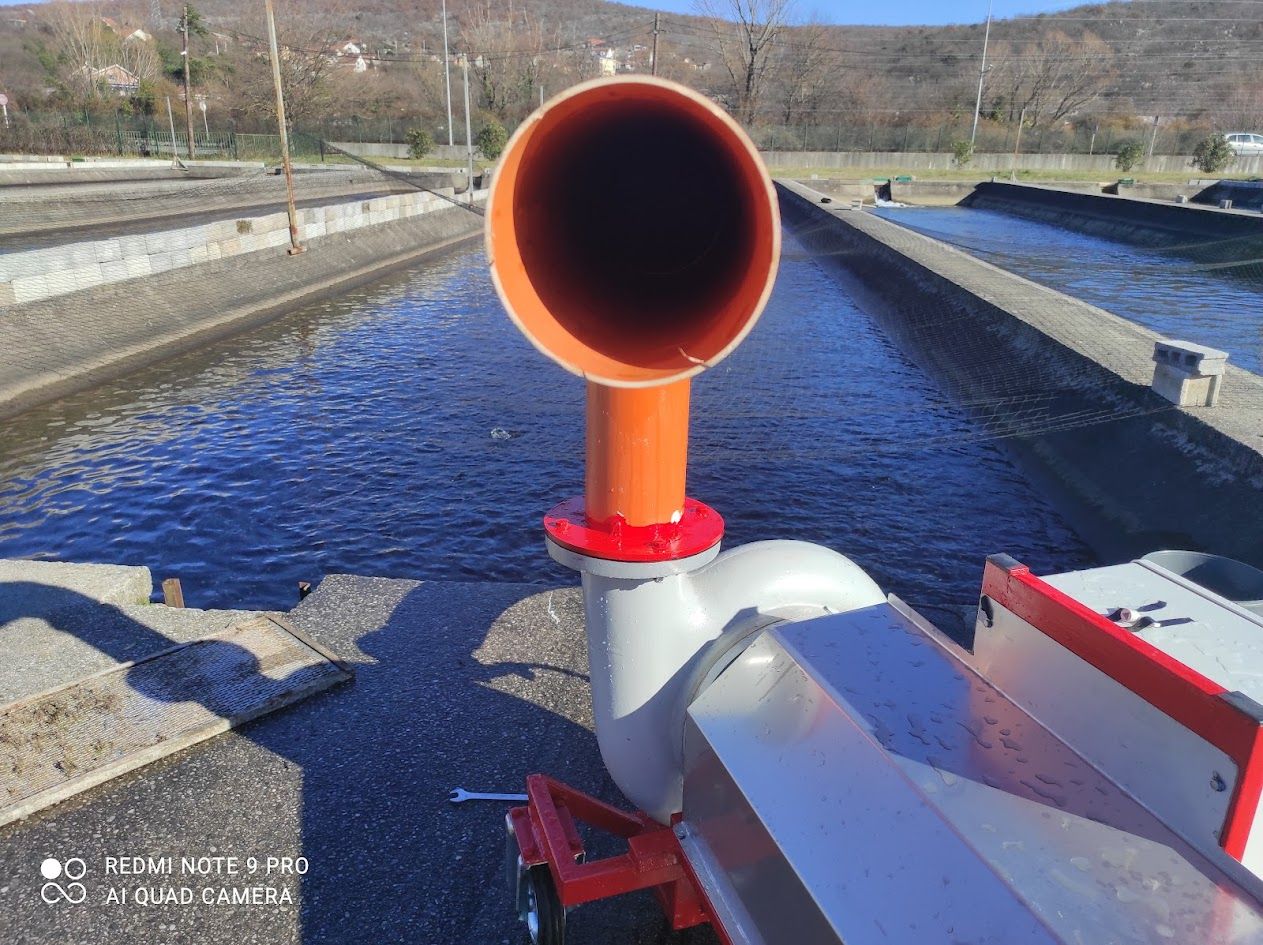

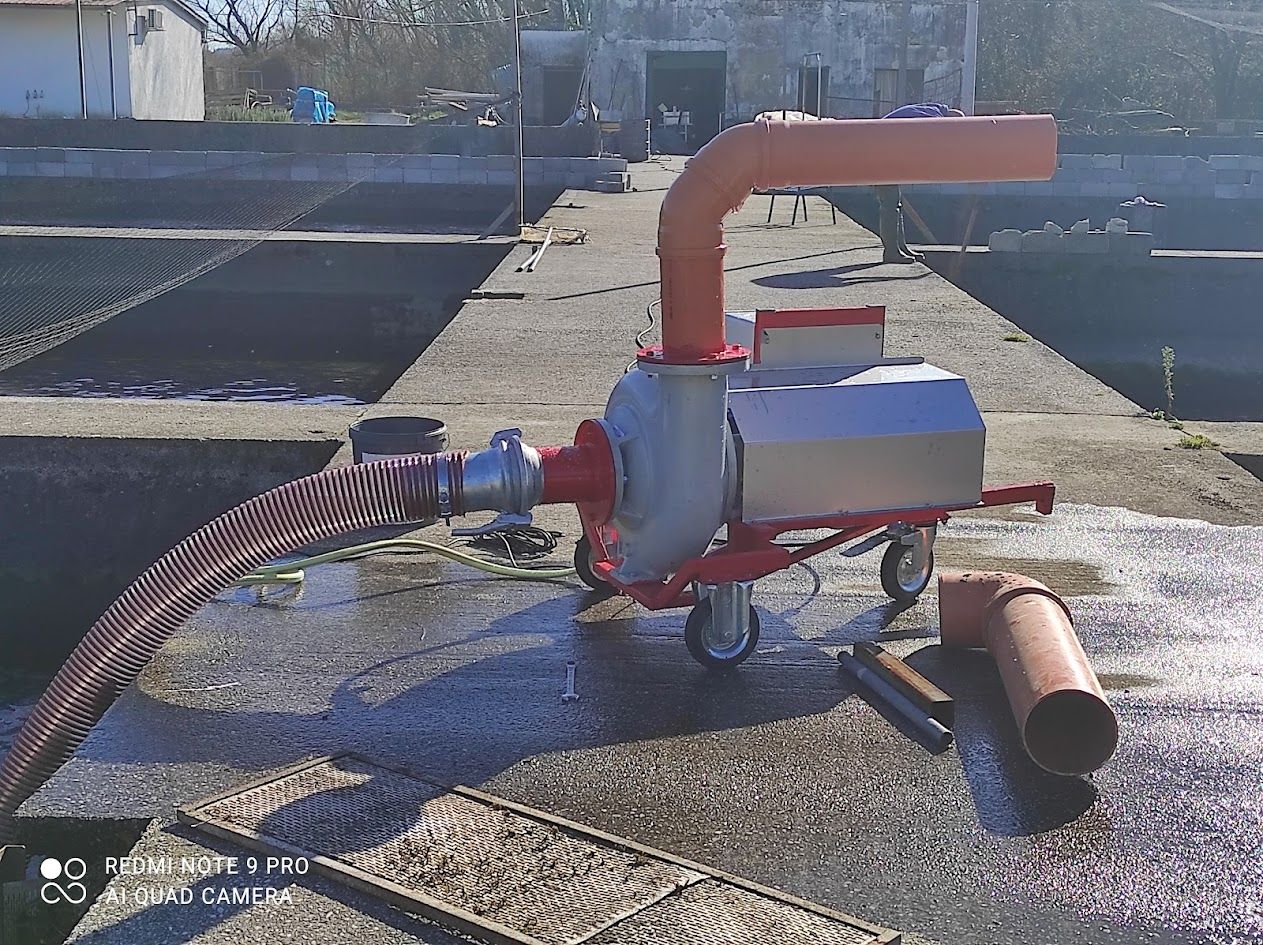

Pump for live fish transport
Live fish pump
Live fish pump
Live fish pump
Live fish pump
Live fish pump
Live fish pump

Purpose

The pump is intended for catching live fish during its classification, transfer from one pool to another, etc.

The control itself is very simple and is carried out using the control buttons on the main cabinet connected to the frequency regulator, which allows the device itself fine speed regulation, "soft" start and stop, blocking of the change in the direction of rotation of the motor, as well as protection against various malfunctions, thus extending working life of the pump.

The body of the pump is made of aluminum alloy, which significantly reduces the weight of the pump itself.

The diameter of the inlet-outlet hose is 150 mm.

The installed power of the pump is 3kW.

The height of the thrust is 2m.

Technical data:

  • Power: 3 kW
  • Maximum fish weight: 450 g
  • Dimensions: 130 x 105 x 195 cm (height x width x length)
  • Weight: 175 kg
  • Flow capacity: 17.000 kg/h
  • Speed regulation: Yes, frequency regulator 4 kW
  • Maximum height: 3m
  • Diameter: 150mm on both suction and discharge branches

Materials

The pump body is made of aluminum.

All these features and functions make this pump an excellent choice for transporting live fish in ponds, aquaculture and other similar industries. The pump is durable, reliable and easy to use, which is very important in an industry where work takes place in specific conditions and with high requirements for safety and efficiency.

Product description:

The 4M.E2 fish transport pump is designed for efficient and safe transportation of live fish from the tanks to further destinations (such as sorting areas or trucks). The pump utilizes suction force to extract fish from the water, then pushes them through a specially designed impeller to the destination.

Moreover, the live fish transport pump can enhance process efficiency and productivity. The pump has a high flow capacity, meaning it can transport large quantities of fish in a short time frame. Additionally, the pump speed regulation assists in adjusting the fish flow rate according to the process needs, which can help prevent fish damage or other issues arising from excessive flow rates.

The advantages of using this pump are manifold. Firstly, the pump provides a safe and efficient means of fish transfer without causing harm to them. This is particularly crucial when dealing with fish intended for sale or breeding. This pump can also aid in reducing the risk of fish diseases by minimizing the stress caused by manual transfer.

In summary, the live fish transport pump is a key tool in the fish transportation process in fish farms. It offers a safe, fast, and efficient means of transferring live fish without causing harm and contributes to improving process efficiency and productivity.
